How to Size an ETP — A Step-by-Step Calculation Guide for Industrial Plants

Most ETP design errors are committed before a single drawing is made. An engineer picks a round number — "let's design for 500 KLD" — without asking what the actual peak flow is, what the COD variation looks like over a 24-hour cycle, or what the effluent standard requires at the outlet. The plant gets built, it fails compliance within six months, and everyone blames the biology.

This guide walks through the actual sizing sequence for an industrial ETP, with real numbers from a 500 KLD food processing plant. The sequence matters. You cannot size the biological reactor until you know the inlet load. You cannot size the clarifier until you know the MLSS. Do it out of order and you will get numbers that look plausible on paper but fail in operation.

Why ETP Sizing Fails

The most common failure is using nominal plant capacity instead of actual water consumption. A plant rated for 500 tonnes per day of food production may consume 800 KL of water in summer (extra CIP cycles, cooling) and 400 KL in winter. Design the ETP for 500 KLD and you are wrong in both seasons.

The second failure is ignoring COD variation. A continuous process plant (sugar mill, brewery) has a fairly stable effluent. A batch process plant (packaged food, pharmaceutical, dairy with CIP cycles) can see COD swing from 500 mg/L to 8,000 mg/L within a single shift. If your equalization tank cannot buffer this, your biological system sees daily shock loads that suppress the biomass and send COD spikes straight through to the outlet.

The third failure is undersizing for future growth. Indian food plants routinely expand production capacity by 30-50% within five years of commissioning. An ETP sized exactly for Day 1 capacity will be inadequate before the plant manager has finished paying for it. Build in at least 25% hydraulic headroom from the start.

The Three Numbers You Need First

Before you touch a sizing calculation, you need three numbers. Without all three, stop and go get them.

1. Design flow (KLD). Not nominal production capacity. Actual measured water consumption from utility records, averaged over 30 days, multiplied by 0.70-0.80 to account for process losses. For plants without water meters, use production records and industry-specific water consumption benchmarks (food: 3-8 L per kg product; dairy: 2-4 L per litre of milk processed; pharma: 10-40 L per kg API).

2. Peak flow factor. The ratio of peak hourly flow to average hourly flow. Measure this by logging the drain pump running hours across a full week. Batch plants often have peak factors of 3-5x. This number governs the hydraulic sizing of pipes, DAF units, and the equalization inlet channel.

3. Inlet BOD and COD. Get actual samples — composite samples over a full production cycle including CIP — not the values quoted in the EIA or the vendor's assumption. For most Indian food plants, inlet BOD ranges from 800-2,500 mg/L and COD from 1,500-5,000 mg/L. Getting these wrong by 2x will cause the biological system to be half the required size.

Equalization Tank Sizing

Equalization HRT should be a minimum of 8 hours for continuous process plants and 16 hours for batch process plants. These are minimums, not targets. If your budget allows, 16-24 hours of equalization will save you far more in biological system stability than it costs in civil construction.

For a 500 KLD plant operating 20 hours per day, with 16-hour HRT:

Volume = 500 m³/day × (16 hours ÷ 24 hours/day) = 333 m³ net volume

Add 20% freeboard: 333 × 1.2 = 400 m³ gross tank volume

Mix the equalization tank continuously. Coarse bubble aeration at 1.5-2.0 m³ air per m³ tank volume per hour is the standard approach. Submersible agitators (7.5-15 kW depending on tank size) work for low-FOG effluents. Do not use equalization tanks as settling tanks — the sludge that accumulates at the bottom becomes a septic, high-COD slug that overloads the downstream system when you eventually clean the tank.

Biological Reactor Sizing

For MBBR systems (the most common technology choice for new Indian ETPs today), sizing is based on SALR — Surface Area Loading Rate — expressed as g BOD per m² of biofilm carrier surface area per day.

The standard design SALR range is 3-5 g BOD/m²/day for domestic and food wastewater. Use the lower end (3 g/m²/day) for difficult industrial wastewaters with inhibitory compounds or high COD:BOD ratios above 3.5. Use the upper end (5 g/m²/day) for straightforward food effluents where the biodegradability is high.

For our 500 KLD food plant example, with inlet BOD of 1,200 mg/L and target outlet BOD of 30 mg/L (CPCB inland discharge standard):

• BOD to remove = (1,200 - 30) mg/L × 500 m³/day = 585 kg BOD/day
• At SALR of 4 g/m²/day: media surface area needed = 585,000 g ÷ 4 = 146,250 m²
• Using K5 media (specific surface area 800 m²/m³): media volume = 146,250 ÷ 800 = 183 m³
• At 50% fill ratio: reactor volume = 183 ÷ 0.50 = 366 m³

Aeration for MBBR must maintain DO above 2.0 mg/L throughout the reactor. The oxygen demand is approximately 1.5 kg O₂ per kg BOD removed, plus 4.5 kg O₂ per kg NH₃-N nitrified if nitrification is required. Size blowers for 1.5x the calculated demand with Variable Frequency Drives for turndown.

Secondary Clarifier Sizing

The secondary clarifier is sized on two parameters: Surface Overflow Rate (SOR) and Solids Loading Rate (SLR). Both must be checked — whichever gives the larger area governs.

For a well-settling industrial sludge (SVI 80-120 mL/g):

• SOR: 20-25 m³/m²/day at average flow; 40-50 m³/m²/day at peak flow
• SLR: 5-7 kg TSS/m²/hr at average flow; 9-11 kg TSS/m²/hr at peak

For our 500 KLD example at MLSS of 3,000 mg/L and RAS ratio of 0.5:

• Total flow to clarifier (including RAS) = 500 + 250 = 750 m³/day
• Solids flux = 3,000 g/m³ × 750 m³/day = 2,250 kg TSS/day
• At SLR of 6 kg/m²/hr: area required = 2,250 ÷ (6 × 24) = 15.6 m²
• At SOR of 22 m³/m²/day: area required = 500 ÷ 22 = 22.7 m²
• SOR governs: use 25 m² (5 m diameter circular clarifier) with margin

Sludge Generation Calculation

Sludge from an ETP has two sources: primary (from DAF or primary clarifier) and secondary (biological waste sludge). Both need to be calculated before you size the sludge handling system.

Primary sludge (DAF): DAF float is typically 2-5% of inlet flow volume. At 3% of 500 KLD = 15 m³/day of float at roughly 3-5% dry solids.

Secondary sludge: Biological sludge yield (Y) for activated sludge treating food wastewater is 0.4-0.6 kg VSS/kg BOD removed. At Y = 0.5 and 585 kg BOD/day removed: 292 kg/day VSS = roughly 350 kg/day TSS (VSS is typically 80-85% of TSS for biological sludge).

Combined sludge at 5% dry solids concentration = (DAF solids ~450 kg/day + secondary solids ~350 kg/day) ÷ 50 kg/m³ = 16 m³/day wet sludge. This feeds into the sludge thickener and dewatering system sizing.

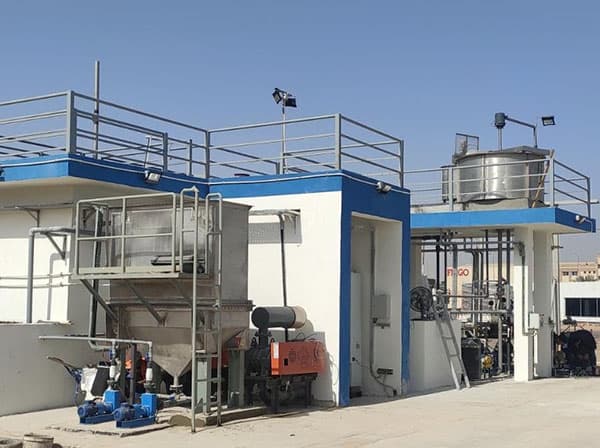

Worked Example: 500 KLD Food Plant

Pulling together the numbers from a real 500 KLD packaged food ETP:

• Inlet: Flow 500 KLD, BOD 1,200 mg/L, COD 2,800 mg/L, TSS 800 mg/L, FOG 200 mg/L
• Outlet target: BOD <30 mg/L, COD <250 mg/L, TSS <100 mg/L (CPCB inland)
• Equalization tank: 400 m³, HRT 19 hours, coarse bubble aeration
• DAF unit: 25 m² footprint, 30 m³/hr hydraulic capacity, removes 85% FOG and 40% BOD
• MBBR reactor: 370 m³, K5 media at 50% fill, SALR 4 g/m²/day
• Secondary clarifier: 5 m diameter, 20 m² surface area
• Sludge thickener: 3 m diameter gravity thickener, 16 m³/day feed
• Filter press: 20-plate, 500 × 500 mm, produces 25-30% DS cake
• Total civil footprint: approximately 1,800 m² including access and sludge yard
• Total CAPEX estimate: ₹2.2-2.8 crore (civil + equipment + E&I)

These numbers give you a basis. Real projects will vary based on site conditions, soil type (which affects civil costs substantially), the actual effluent characteristics, and local equipment supplier pricing. But starting from first principles instead of vendor brochures will get you to a system that actually works.
