Zero Liquid Discharge (ZLD)

Zero Liquid Discharge (ZLD) is the highest standard of industrial wastewater management — a treatment approach in which all effluent generated at a facility is processed and no liquid waste is released to the environment. ZLD systems recover the vast majority of water for reuse within the plant, leaving only a concentrated solid residue (brine concentrate, salt cake, or dry solids) for disposal. In India, ZLD is mandated by the Central Pollution Control Board (CPCB) for certain industries, and state PCBs are increasingly requiring ZLD as a condition of Consent to Operate for water-intensive industrial sectors.

CPCB has notified ZLD requirements for distilleries, tanneries, textile (dye and bleach) units, and facilities discharging to water-stressed rivers and lakes. The National Green Tribunal (NGT) has further reinforced ZLD mandates across multiple industrial sectors and geographies. Food processing, pharmaceutical, and chemical industries are increasingly subject to ZLD conditions when located in water-stressed districts or near sensitive receiving water bodies. Non-compliance with ZLD mandates can result in plant closure orders, penalties, and revocation of Consent to Operate.

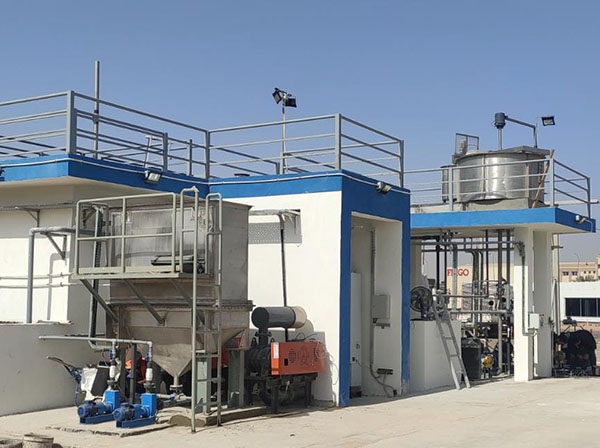

A ZLD system is built in layers. The first stage is pre-treatment — typically a conventional effluent treatment plant (ETP) to reduce organic load, suspended solids, and oil and grease to acceptable levels for membrane feed. The second stage is Reverse Osmosis (RO), which concentrates dissolved solids and recovers 65–75% of the feed as clean permeate. The third stage is thermal evaporation — Multi-Effect Evaporation (MEE), Mechanical Vapour Recompression (MVR), or Agitated Thin Film Dryer (ATFD) — which further concentrates the RO reject/brine to reduce volume. The final stage, where required, is crystallisation to produce a dry, disposable solid. The entire water condensate from thermal stages is recovered as high-purity distillate for reuse.

The choice of thermal evaporation technology depends on the effluent composition, volume, and available energy. MVR (Mechanical Vapour Recompression) is the most energy-efficient option, using a mechanical compressor to recompress evaporated vapour and recycle its latent heat — reducing steam consumption to near zero and operating primarily on electrical energy. MEE (Multi-Effect Evaporation) uses multiple evaporator bodies in series to reuse steam energy across effects, reducing steam consumption per litre evaporated. ATFD (Agitated Thin Film Dryer) handles high-viscosity concentrates and slurries that would foul conventional evaporators — typically used as the final concentration stage before crystallisation. Spans Envirotech selects the optimal combination of these technologies based on a detailed techno-economic analysis of each project.
