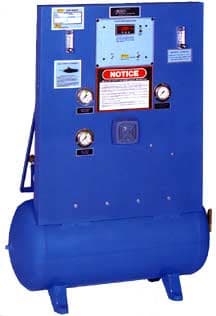

Gas Mixing Systems
Precision 2 and 3-gas blending systems up to 20,000 SCFH — with integrated analyzers, alarms, and NEMA 4X enclosure options for demanding industrial environments
Overview
About Gas Mixing Systems
Gas mixing systems blend two or three component gases to a precise target composition for delivery to downstream processes. Flow control is managed through mass flow controllers or calibrated rotameters, with integrated gas analyzers continuously verifying the blend composition and alarming if the mix drifts outside specified tolerances.
Systems are sized up to 20,000 SCFH (approximately 525 m³/hr) to cover everything from small laboratory applications to large industrial production lines. Where gases will be used in food contact, medical, or outdoor applications, NEMA 4X stainless steel enclosures are available to meet hygiene and environmental protection requirements.
Component gases are typically supplied from on-site generators (nitrogen, oxygen) combined with delivered specialty gases (CO₂, argon), making gas mixing systems natural companions to PSA nitrogen and oxygen generators — allowing precise MAP or welding gas blends to be produced on-site without purchasing expensive pre-mixed cylinder gases.
Specifications
Technical Specifications
| Configurations | 2-gas and 3-gas blending |
| Maximum Flow | 20,000 SCFH (525 m³/hr) |
| Blend Control | Mass flow controllers or calibrated rotameters |
| Monitoring | Integrated gas analyzer with high/low composition alarms |
| Enclosure Options | Standard or NEMA 4X stainless (outdoor/washdown) |
| Gases | N₂, O₂, CO₂, Ar, and other industrial gases |
Benefits
Key Advantages
- Eliminates expensive pre-mixed gas cylinder purchases
- Integrated analyzer continuously verifies blend accuracy and alarms on deviation
- NEMA 4X stainless enclosure available for food, outdoor, or washdown environments
- Combines with on-site N₂/O₂ generators to produce custom blends at low cost
- 2 and 3-gas configurations cover the full range of industrial blending needs
- Precise composition control protects product quality in food and welding applications
Applications
Industries & Use Cases
