Conventional Clarifier

Gravity sedimentation for reliable primary and secondary clarification in municipal and industrial wastewater treatment — central-driven and peripheral-driven circular configurations with continuous sludge removal

Overview

About Conventional Clarifier

A conventional clarifier is a circular or rectangular basin in which the velocity of wastewater is reduced sufficiently for suspended particles to settle to the tank floor under gravity. It is one of the most fundamental and widely used unit operations in wastewater treatment, deployed as a primary clarifier (ahead of biological treatment to remove raw settleable solids), as a secondary clarifier (following biological treatment to separate biological sludge from treated water), and in industrial ETP applications for chemical precipitation and sedimentation.

Circular clarifiers are the most common configuration for municipal and industrial applications, available in two drive arrangements: central-driven, where the rotating scraper mechanism is supported and driven from a central pier or column; and peripheral-driven, where the mechanism is supported by a rotating bridge that travels on the tank wall, making it suitable for very large diameter tanks. Both configurations achieve the same fundamental objective — collecting settled sludge from the tank floor and conveying it to a central sump for pumped withdrawal.

Effective clarifier performance depends on maintaining a low, uniform horizontal velocity across the tank cross-section so that rising particles do not escape with the overflow. Inlet baffles distribute inflow evenly, while a peripheral overflow weir collects clarified effluent uniformly around the tank circumference to prevent short-circuiting. Sludge withdrawal rate is controlled to match sludge production and maintain the desired sludge blanket depth.

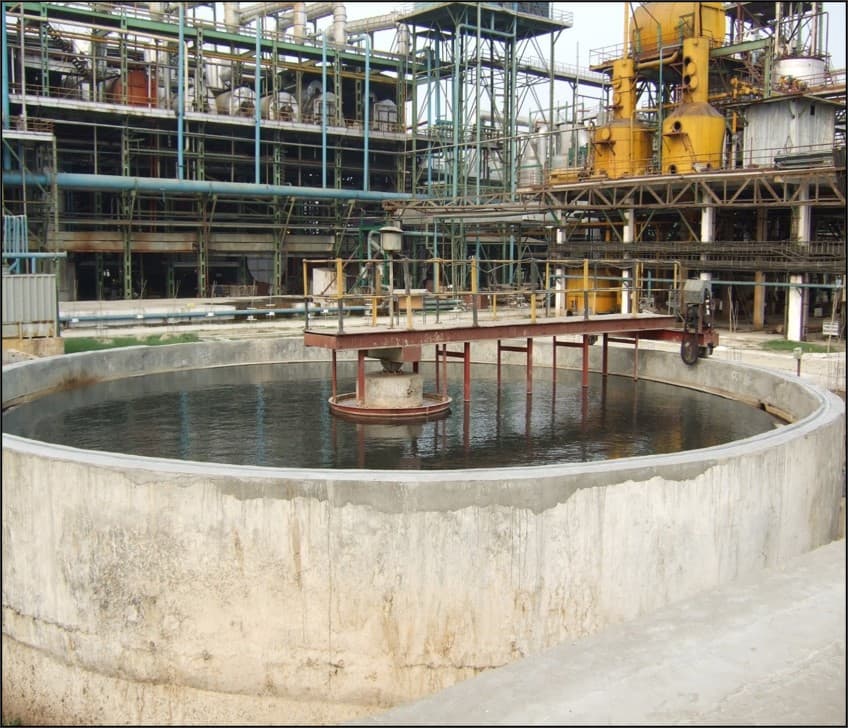

Conventional circular clarifier with central-driven scraper mechanism

Process

How a Conventional Clarifier Works

1

Influent Distribution

Wastewater enters the clarifier at the centre through a feed well or inlet pipe. A stilling baffle dissipates the inlet velocity, distributing flow radially and uniformly across the full tank cross-section to prevent turbulent mixing with settled sludge.

2

Quiescent Settling Zone

As wastewater spreads radially from the centre toward the peripheral weir, horizontal velocity decreases progressively. In this quiescent zone, particles with sufficient settling velocity settle to the tank floor while clarified water rises and overflows the peripheral weir.

3

Scraper Mechanism Rotation

A slowly rotating scraper arm (typically 1–3 rpm) sweeps the settled sludge across the conical or sloped tank floor toward the central sludge hopper. Scrapers may be fitted with skimming blades at the water surface to remove floating scum.

4

Sludge Collection & Withdrawal

Sludge accumulates in the central hopper and is continuously or intermittently withdrawn by a sludge pump for thickening, dewatering, or further treatment. The sludge withdrawal rate is regulated to maintain an appropriate sludge blanket and target underflow concentration.

5

Clarified Effluent Collection

Clarified water overflows the peripheral launder weir uniformly around the entire tank circumference. The weir length per unit flow rate is a key design parameter — longer weirs reduce surface overflow rate and improve solids retention. Collected effluent flows to the next treatment stage.

Benefits

Key Advantages

  • Proven, robust technology with decades of reliable service across municipal and industrial applications
  • Simple mechanical design — rotating scraper and weir system with minimal maintenance requirements
  • Available in central-driven and peripheral-driven configurations to suit tank sizes from 5 m to 60+ m diameter
  • Handles both primary (raw solids) and secondary (biological sludge) clarification duties
  • Continuous sludge removal maintains consistent settled water quality
  • Surface scum removal capability through optional floating scum skimmer blades
  • Low energy consumption — only the slow-rotating scraper mechanism requires power
  • Compatible with upstream coagulation/flocculation for enhanced chemical precipitation
  • Civil and steel fabricated construction options to match project budget and site conditions
  • Well-understood design parameters enable reliable performance prediction and sizing

Applications

Industries & Use Cases

Municipal Sewage Treatment Plants (STP)Industrial Effluent Treatment Plants (ETP)Common Effluent Treatment Plants (CETP)Drinking Water Treatment PlantsFood & Beverage Industry WastewaterPulp & Paper Mill ClarificationSugar & Distillery Effluent TreatmentTextile & Dyeing IndustryPharmaceutical Manufacturing EffluentChemical & Petrochemical Wastewater

Get a Quote or Technical Consultation

Our engineers can help you select the right conventional clarifier configuration for your application.
